AGSM IoT application
AGSM is a sensor module that can be used with the ESP32 module.
Description
In this project, we discuss how to send sensor readings from an ESP32 to ThingSpeak.
While the project uses the AGSM sensor, the example can be easily modified to use other sensors.
Using ThingSpeak allows you to post sensor readings to a website and display them on timestamped charts.
You can also visualize graphs using MATLAB visualization and access readings from anywhere in the world.
There are several ways to send sensor readings to ThingSpeak. This project uses the thingspeak-arduino library. You can see library examples on the GitHub page.
Item
ESP32-DevKitC
AGSM_CO

Arduino Example code
#include <Arduino.h>
#include <WiFi.h>
#include "ThingSpeak.h"
// WIFI Settings
#define WIFI_SSID "your wifi ssid"
#define WIFI_PASSWORD "your wifi pass"

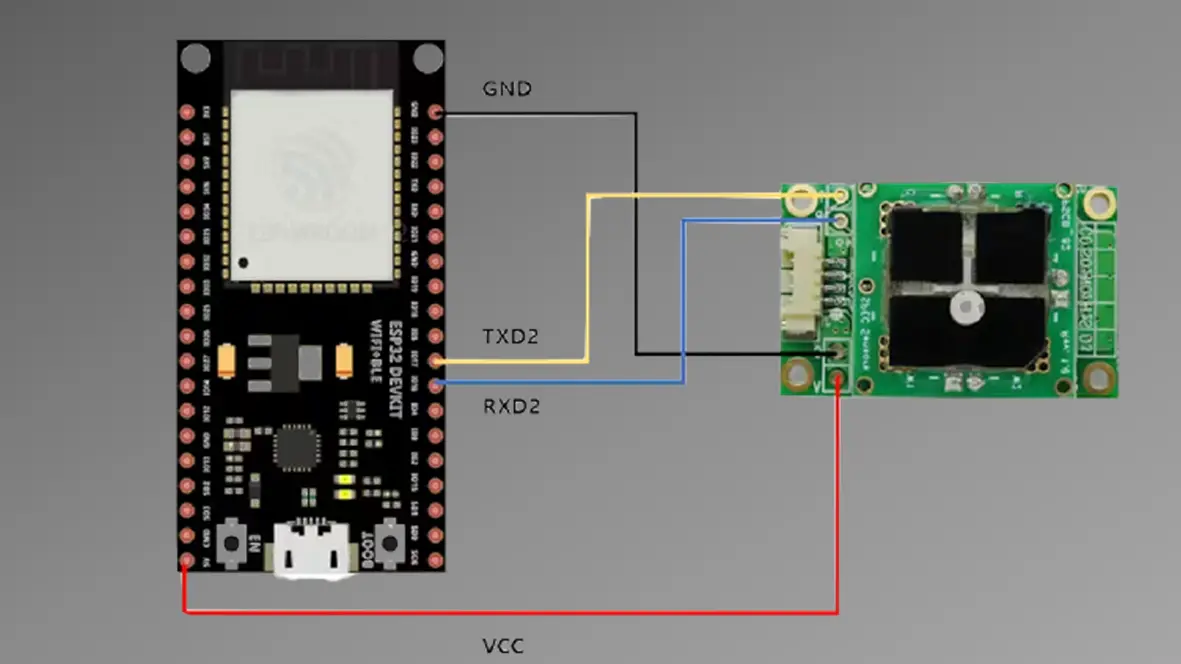

//---UART2--------
#define RXD2 16
#define TXD2 17
int Uart2ReceiveLength = 0;
WiFiClient client;
// Thingspeak Timer variables
unsigned long lastTime = 0;
unsigned long timerDelay = 30000;
int AGSM_gas_value[8]={0};
// Thingspeak interface
const char* myWriteAPIKey = "your write apikey";
unsigned long myChannelNumber = "your channelnumber";
#define ContinueMode 1
#define PollingMode 0
const int BUFFER_SIZE = 100;
char buf[BUFFER_SIZE];
int inByte = 0;
char tempChars[100];
int ppb=0;
float ppm=0.000;
float temp=0;
float rh=0;
int Serial_number=0;
int ADC_value; // AGSM Module adc value
void setup()
{
Serial.begin(115200);
Serial2.begin(9600, SERIAL_8N1, RXD2, TXD2); // Sensor connection port
#if ContinueMode
Serial.println("Continuous Mode");
#else if PollingMode
Serial.println("Polling Mode");
#endif
Serial.println("Serial, Conc.(PPB), Temp.(C), Rh(%), Adc.(Counts), Temp.(Counts), Rh(%Counts)");
#if ContinueMode
Serial2.write('c');
Serial2.write('\r');
#endif
ThingSpeak.begin(client); // Initialize ThingSpeak
}
void parseData()
{ // split the data into its parts
char * strtokIndx; // this is used by strtok() as an index
//SN [XXXXXXXXXXXX], PPB [0 : 999999], TEMP [-99 : 99], RH [0 : 99], RawSensor[ADCCount], TempDigital, RHDigital, Day [0 : 99], Hour [0 : 23], Minute [0 : 59], Second [0 : 59]
//length is variable LEN= 50 DATA= 071421030446, 875, 23, 19, 2111737, 23956, 19605
strtokIndx = strtok(buf,","); // get the first part - the string
Serial_number = atoi(strtokIndx);
strtokIndx = strtok(NULL,",");
ppb = atoi(strtokIndx);
strtokIndx = strtok(NULL, ",");
temp = atoi(strtokIndx);
strtokIndx = strtok(NULL, ",");
rh = atoi(strtokIndx);
strtokIndx = strtok(NULL, ",");
ADC_value = atoi(strtokIndx);
AGSM_gas_value[0]=(float)(ppb);
// AGSM Module data
Serial.print(" ppb= ");
Serial.print(ppb);
Serial.print(" Temperature= ");
Serial.print(temp);
Serial.print(" Humidity= ");
Serial.print(rh);
Serial.print(" ADC= ");
Serial.print(ADC_value);
Serial.println(" ");
for(int i=0; i<inByte;i++)
buf[i]=0;
}
void loop()
{
while (Serial2.available()) // read from AGSM port, send to Serial port to interupt continuous output send 'c''/r' without line ending, may have to send more than once.
{
inByte = Serial2.readBytesUntil('\n', buf, BUFFER_SIZE);
parseData();
}
if ((millis() - lastTime) > timerDelay)
{
// Connect or reconnect to WiFi
if(WiFi.status() != WL_CONNECTED){
Serial.print("Attempting to connect");
while(WiFi.status() != WL_CONNECTED){
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
delay(5000);
}
Serial.println("\nConnected.");
}
if((AGSM_gas_value[0]>=0) && (AGSM_gas_value[0] < 50000))
{
// set the fields with the values
ThingSpeak.setField(1, AGSM_gas_value[0]);
int x = ThingSpeak.writeFields(myChannelNumber, myWriteAPIKey);
if(x == 200){
Serial.println("Channel update successful.");
}
else{
Serial.println("Problem updating channel. HTTP error code " + String(x));
}
lastTime = millis();
}
}
}
