# 디바이스 연결 방법

## Connection DIAGRAM (UART)

<figure><img src="https://1534755138-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8USAZVpjShlBinaURjim%2Fuploads%2Fgit-blob-6165660ec6fb90eb9b4c1026dc3d0f2735275da1%2Fconnetion_uart_diagram.PNG?alt=media" alt=""><figcaption></figcaption></figure>

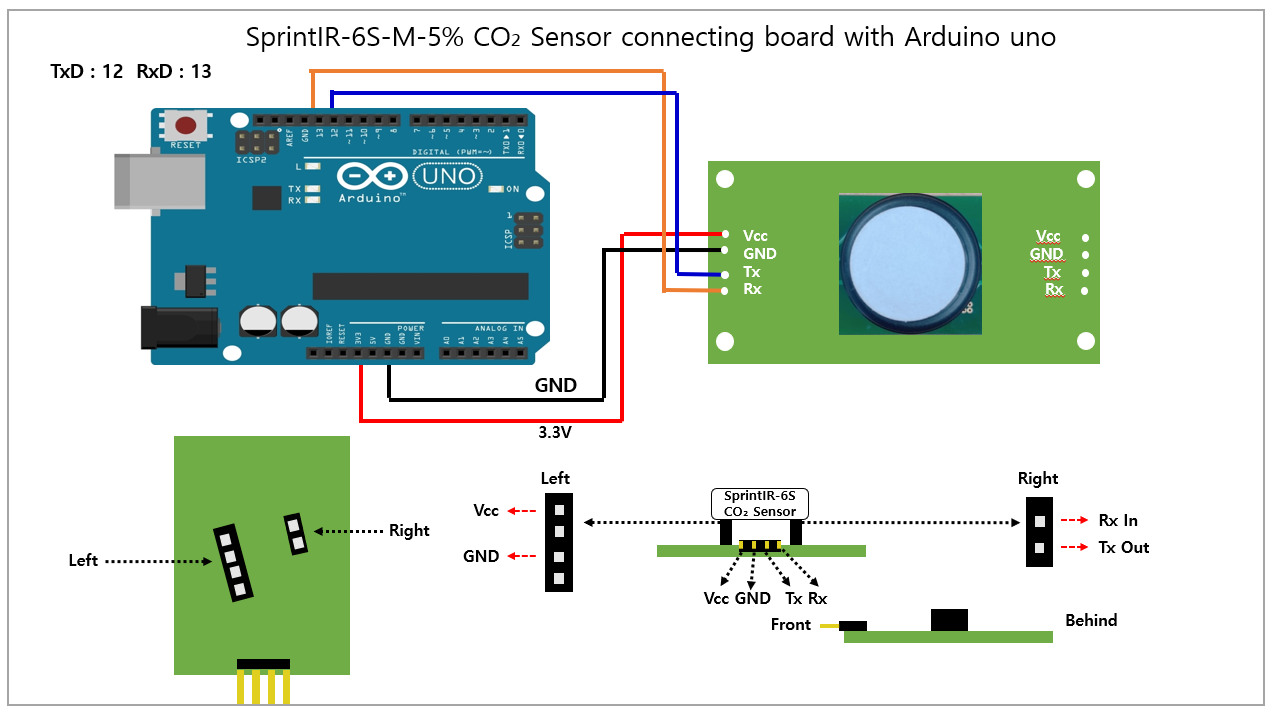

## Arudino uno와 SprintIR 연결

* Arduino Uno

|  항목 | Arduino Uno | SprintIR |
| :-: | :---------: | :------: |
| VCC |  5V or 3.3V |    VCC   |
| GND |     GND     |    GND   |
|  TX |      13     |    RX    |
|  RX |      12     |    TX    |

<figure><img src="https://1534755138-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8USAZVpjShlBinaURjim%2Fuploads%2Fgit-blob-ec73c8d46301b1271f4f7ae5f2fdc9aefc493776%2Fsprintir_with_aruduino.PNG?alt=media" alt=""><figcaption></figcaption></figure>

* Arduino Due

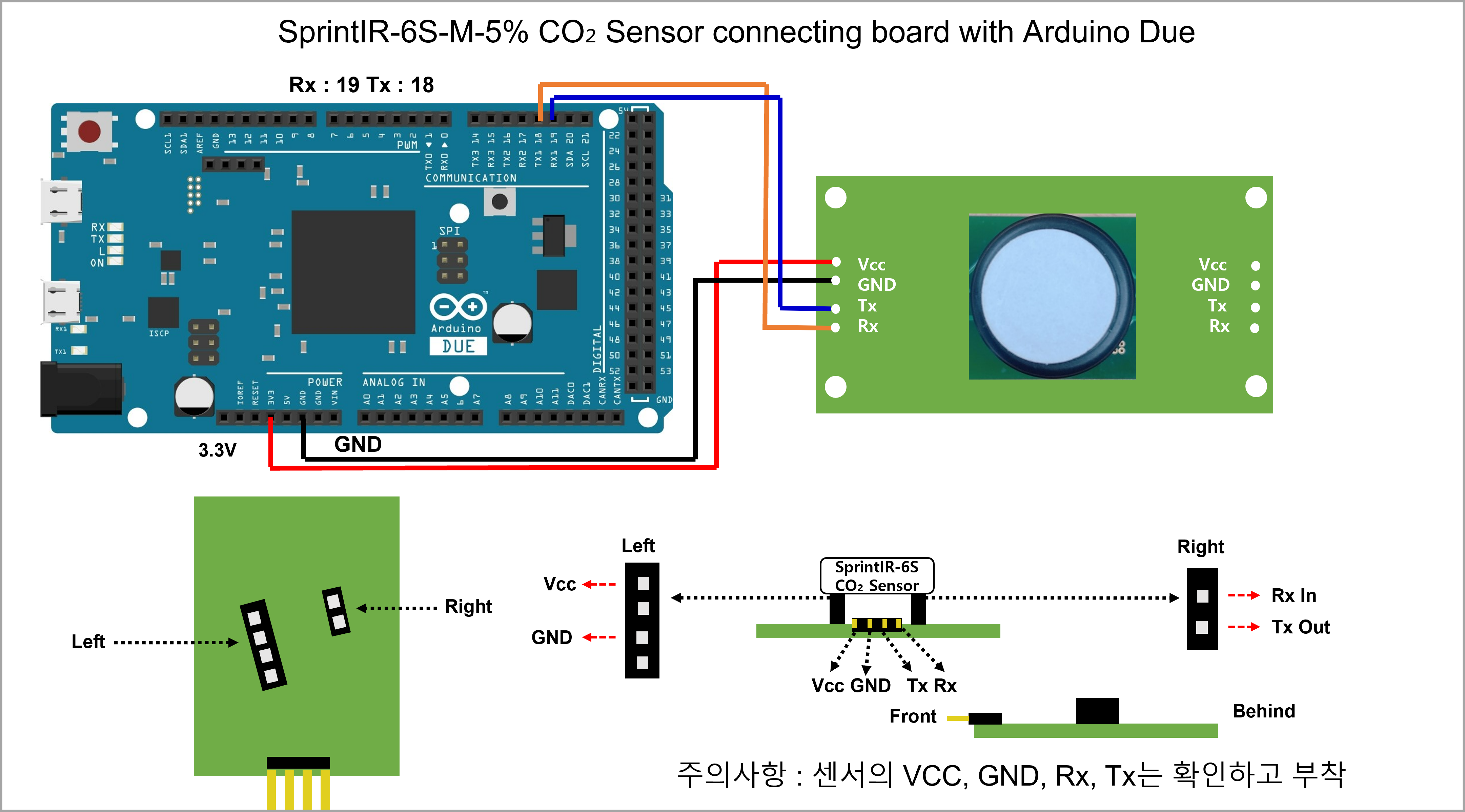

<figure><img src="https://1534755138-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8USAZVpjShlBinaURjim%2Fuploads%2Fgit-blob-0f276d6546ba1354de54029292f30303f617212c%2Fsprintir_6s_connecting_with_arduino_due.png?alt=media" alt=""><figcaption></figcaption></figure>

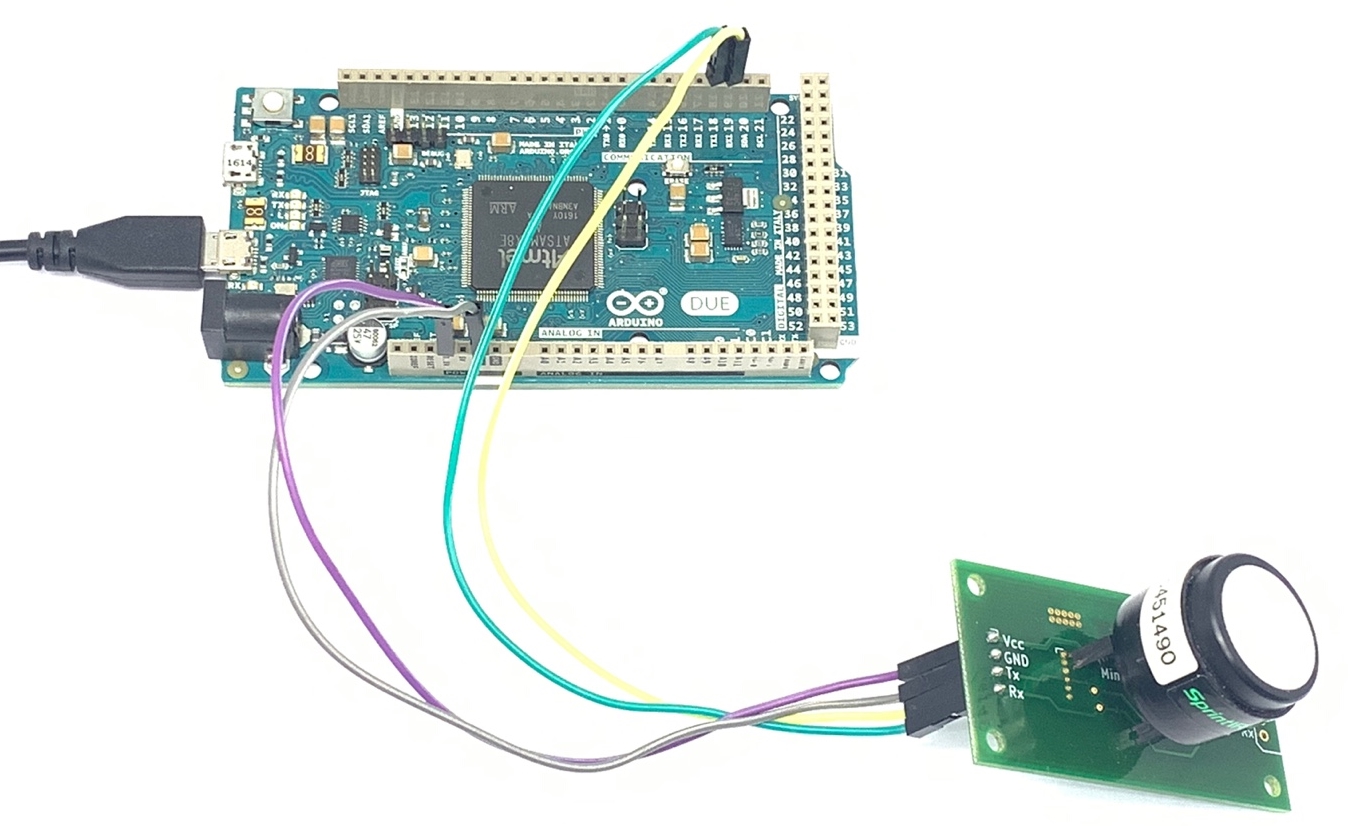

<figure><img src="https://1534755138-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8USAZVpjShlBinaURjim%2Fuploads%2Fgit-blob-0aa2654bfcbf3c466ee0a02b54dd6f89a04aef28%2Fsprintir_6s_%EC%8B%A4%EC%82%AC.jpg?alt=media" alt=""><figcaption></figcaption></figure>

###
